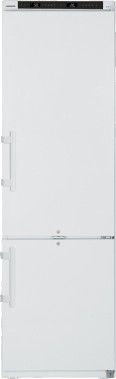

Liebherr LCexv 4010 MediLine fridge/freezer combination

For safe storage of flammable substances

The Liebherr LCexv 4010 is explosion-proof (zone 2) and combines cooling and freezing in one compact device, with completely separate control. Various alarm systems and potential-free contacts for connection to a central alarm system are available.

Temperature stability IEC 60068-3

All Liebherr laboratory refrigerators and freezers are tested in the modern Liebherr Research & Development center according to the procedure IEC 60068-3 for measuring temperature stability.

more information about IEC 60068-3

ATEX 114 Explosion Proof

The explosion-proof interior has been tested in accordance with EU Directive 2014/34/EU (ATEX 114). Classification II 3G Ex nA II T6 makes this model suitable for the storage of explosive and highly flammable substances in closed containers.

more information about ATEX 114

Additional temperature control possible.

An opening (Ø 7.6 mm) has been made at the top of the interior, which makes it possible to insert an external temperature sensor or other measuring connection.

A good memory for temperatures.

The minimum and maximum indoor temperature are stored and can be read at any time over a period of 41 days.

Protected against freezing.

The safety thermostat protects stored samples and medicines from freezing. In the event of a defect, the safety thermostat prevents the interior temperature from falling below +2°C.

Self-closing door.

The self-closing door prevents unnecessary loss of cold air and thus helps to save energy costs. The door remains open at an angle of 90°, but will close automatically from 75°.

Remote monitoring.

The relay contact can be connected to a central logging or alarm system that can alert security personnel or concierge, for example, outside working hours. Warnings with visual or acoustic alarm are possible.

With left or right hinged door.

With the option to change the door opening direction, the cabinet is always easily accessible. All domestic models are factory fitted with right-hinged doors and are prepared for hinge change.

Audible warning in case of malfunction.

When the temperature rises above the set value, you will be warned by means of an acoustic signal.

Standard information:

• Voltage: 220-240V ~
• Frequency: 50Hz
• Connection value: 1.5 A

Dimensions:

• Depth with door open 90°: 1182 mm
• Width with door open 90°: 640 mm
• Interior height freezer section in mm: 597 mm
• Interior width freezer section in mm: 431 mm
• Interior depth freezer section in mm: 435 mm

cooling:

• Maximum fluctuation cooling section: 3.9 °C
• Maximum gradient cooling section: 4 °C

Freeze:

• Number of freezer drawers: 3
• Number of glass shelves freezer section: 2
• Maximum fluctuation freezer section: 5.5 °C
• Maximum gradient freezer section: 7.9 °C
• Number of shelves: 2
• Max number of baskets: 3
• Load capacity of freezer compartment shelves: 24 kg
• Number of drawers with compartment height: 2 x 156 mm, 1 x 165 mm
• Maximum compartment height: 200 mm

Other characteristics:

• Type of Design: HardLine
• Door self-closing: Yes
• Door hinge: Right, interchangeable
• Handle: Lever handle
• Interchangeable door seal: Yes
• Length of connection cable: 280 cm
• Number of shelves: 5
• Cooling shelf material: Glass
• Freezer shelf material: Glass
• Control panel position: Outside
• Temperature alarm: Optical and acoustic temperature alarm
• Power failure alarm: at the end of power failure
• Door alarm cooling section: Acoustic door alarm
• Load capacity platform in kg: 40 kg
• Usable depth of shelf in mm: 409 mm
• Standard shelf height with equal distribution of grids: 21 cm
• Shelf height above with equal distribution: 20 cm
• Shelf height at the bottom with equal distribution: 23 cm
• Maximum number of shelves (shelf 10 cm): 9
• Temperature sensor throughput option: Yes
• Safety thermostat: Yes
• Adjustable feet in height: 2
• Interface: RS 485
• Potential-free contact: Yes
