Explosion proof. Also under the worktop

The Liebherr LGUex 1500 in explosion-proof version offers 139 liters of freezer space with a temperature range of -9 ° C to -26 ° C. Version with double alarm and potential-free contact, the highest and lowest temperatures can be read on the display for a maximum of 40 days.

Temperature stability IEC 60068-3

All Liebherr laboratory refrigerators and freezers are tested in the modern Liebherr Research & Development center according to the IEC 60068-3 procedure for measuring temperature stability.

ATEX 114 Explosion proof

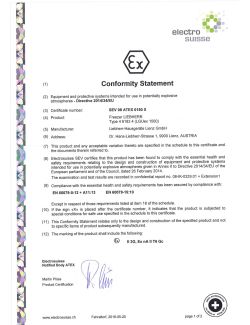

The explosion-proof interior has been tested in accordance with EU Directive 2014/34 / EU (ATEX 114). Due to the classification II 3G Ex nA II T6, this model is suitable for the storage of explosive and highly flammable substances in closed containers.

Additional temperature control possible.

An opening (Ø 7.6 mm) is provided at the top of the interior, which offers the option of feeding through an external temperature sensor or another measuring connection.

Alarm on demand.

An optical and acoustic temperature alarm warns of an unwanted temperature change of 2K. The alarm limit can be adjusted if necessary.

Extremely accurate temperature.

The laboratory devices with Profi electronics have 1-point calibration for extremely precise temperature control. This allows compensation between the set and the actual interior temperature. The correction value to be set can be changed in steps of 0.1 ° C.

A good memory for temperatures.

The minimum and maximum indoor temperatures are stored and can be read out at any time over a period of 41 days.

Self-closing door.

The self-closing door prevents unnecessary loss of cold air and thus helps to save energy costs. The door remains open at an angle of 90 °, but will close automatically from 75 °.

Remote monitoring.

The relay contact can be connected to a central logging or alarm system that can alert security personnel or caretaker, for example, outside working hours. Warnings with optical or acoustic alarm are possible.

With left or right opening door.

With the option to change the door hinging direction, the cabinet is always easily accessible. All household models are factory-fitted with right-hinged doors and are prepared for hinge exchange.

Audible warning in case of failure.

When the temperature rises above the set value, you will be warned by an acoustic signal.

Standard information:

• Housing: White
• Door color: White
• Door / lid material: Steel
• Gross volume total: 139 l
• Net content total: 129 l
• Gross content of the freezer section: 139 l
• Net contents of freezer section: 129 l
• Energy consumption per year: 338 kWh
• Energy consumption per day: 0.926 kWh
• Energy costs per year: € 78
• Noise level: 45 dB (A)
• Climate class: 7
• Suitable for unheated space: No.
• Suitable for ambient temperatures from: + 10 ° C to 35 ° C
• Refrigerant: R600a
• Voltage: 220-240 V ~
• Frequency: 50 Hz
• Connection value: 1.0 A.
• Heat output in kJ / h: 330 kj / h
• Number of compressors: 1

Dimensions:

• Height: 820 mm
• Width: 601 mm
• Depth (incl. Wall distance): 618 mm
• Depth with door open 90 °: 1176 mm
• Width at 90 ° open door: 640 mm
• Can be supported: Yes
• Interconnectable: Yes
• Can be placed against a wall: Yes
• Interior height: 663 mm
• Interior width: 454 mm
• Interior depth: 450 mm
• Installation height in mm: 825 (+45) mm
• Installation width in mm: 605 mm
• Minimum installation depth in mm: 620 mm
• Net weight: 42 kg
• Gross weight: 45 kg
• Package height: 875 mm
• Package width: 615 mm
• Packaging depth: 709 mm

Freeze:

• Freezing system: Static
• Defrosting system freezer compartment: Manual defrosting
• Freezing temperature range: -9 ° C to -26 ° C
• Number of freezer drawers: 3
• Maximum fluctuation of the freezer section: 3.3 ° C
• Maximum gradient freezer section: 6.6 ° C
• Freezer drawer dimensions in mm (h / w / d): 138 x 467 x 444 mm
• Dimensions lower freezer drawer in mm (h / w / d): 175 x 467 x 285 mm
• Number of shelves: 4
• Number of baskets: 1
• Max number of baskets: 4
• Load capacity of the freezing part of the shelves: 24 kg
• Number of drawers with compartment height: 149 mm
• Maximum shelf height: 149 mm

Other characteristics:

• Type of Design: HardLine
• Self-closing door: Yes
• Door hinges: Right, reversible
• Handle: Lever handle
• Interchangeable door seal: Yes
• Length of connection cable: 280 cm
• Freezer shelf material: Evaporator plates
• Display: Digital temperature display
• Type of control panel: Push button
• Temperature alarm: Optical and audible temperature alarm
• Power failure alarm: at end of power failure
• Door alarm freezer section: Acoustic door alarm
• Usable depth of shelf in mm: 450 mm
• Temperature sensor feedthrough: Yes
• Finally: Yes
• Interior material: White plastic
• Height adjustable feet: 2
• Calibration: 1 point calibration
• Save MIN / MAX temperatures: Yes
• Alarm limits adjustable: Yes
• Registration of alarms: Yes
• Interface: RS 485
• Potential-free contact: Yes
• Extra feature 1: Spark-free interior
